1. Description

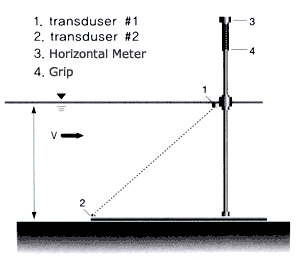

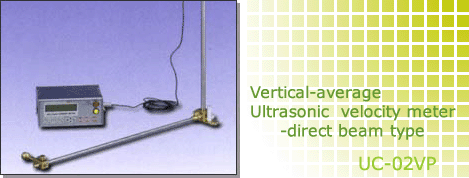

This portable velocity meter is used for the velocity distribution study and for the H-Q curve correction. It can also add depth meter function. This meter can accurately and conveniently measures the velocity in the shallow stream unlike conventional velocity meters.


2. Dimension

Depth Range : 0.05m~1.0m
Measurement Range : 0.01§½~10§½
Accuracy :
0.01§½~0.1§½ : +/-1%
0.1§½ < V ¡Â10§½ : +/-0.5%
Memory : 500data
Power : Rechargeable Battery
Measuring Time Interval :
1~99 sec
Cosine components : +/-90'(cos¥á)

[Accessories]
Signal Cable 6m X 2P within connector
Charger Adapter DC 12 V ¡¡
