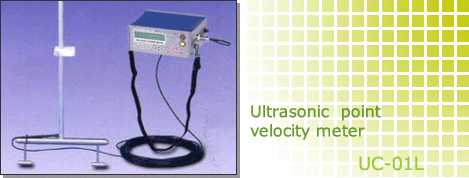

1. Description

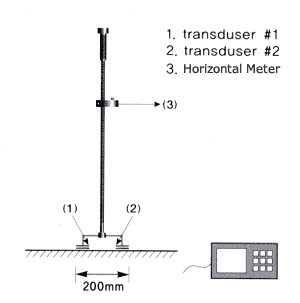

This meter measures velocities at various points formed by topographical differences. It maximized the measurement accuracy with ideal cos a property (a = +/- 90) and automatic sensing of angles when the meter axis inclines to the flow direction or the velocity increases on the slope.


2. Dimension

Depth Range :
Standard 0.1m~1.0m
Suspending pipe 01.m~3m(option)
Suspending wire 01m ~ 20m (option)
Measurement Range : 0.01 §½ ~ 10§½
Accuracy : 0.01§½~0.1§½ : +/-1%
0.1§½ < V ¡Â10§½ : +/-0.5%
Memory : 500 data
Power : Rechargeable Battery
Measuring Time Interval :
1~99 sec
Cosine components : +/-90'(cos¥á)


[Accessories]
Signal Cable / 6m X 2P within connector
Charger Adapter / DC 12V
