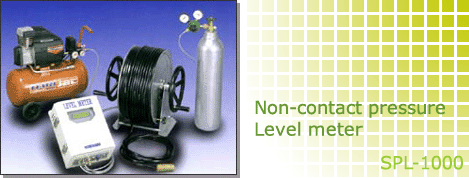

1. Description

A portable level meter that eliminated errors due to fluid density, atmospheric pressure and temperature by making the sensor not contact the fluid This method allows a longer life cycle, easier and less costly installation, maintenance and repair.


2. Measurement Principle
It uses the compressed air or nitrogen gas in the water column pressure measurement pipe. The water level is calculated by measuring the pressure in the part of the pipe that is under the water level.


3. Features and Applications
a. Measurement of the water level under the surface ice

b. Measurement of the water level in the streams with severe soil and sand washout

c. Measurement of the water level in the underground water of any depth

d. Measurement of the water level in the hot springs
Non-contact feature removes the effect of temperature (maximum 150 o C) and ingredients.

e. Measurement of fluid level of any type
It can measure the levels in the acid, high-temperature and turbid fluid.

f. Measurement of the coastal tides

g. Warranty
One year full labor and parts.

h. Price
Very competitive
